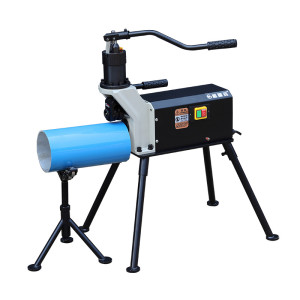

2inch to 12inch Steel Pipes for Max 10mm Automatic Roll Grooving Machine Roll Groover

KeyWords

2inch to 12inch Steel Pipes for Max 10mm Automatic Roll Grooving Machine Roll Groover

The semi-automatic steel pipe grooving machine is designed for efficiently creating grooves on steel pipes, primarily used in piping systems such as fire protection, plumbing, and HVAC.

Grooving Capacity: 2"-12" （2"~16"） for optional

Max Wall Thickness: 10mm

Power Supply: 750W-3PH

Output Speed: 23RPM

Contact Now

Favorites

Detail Information

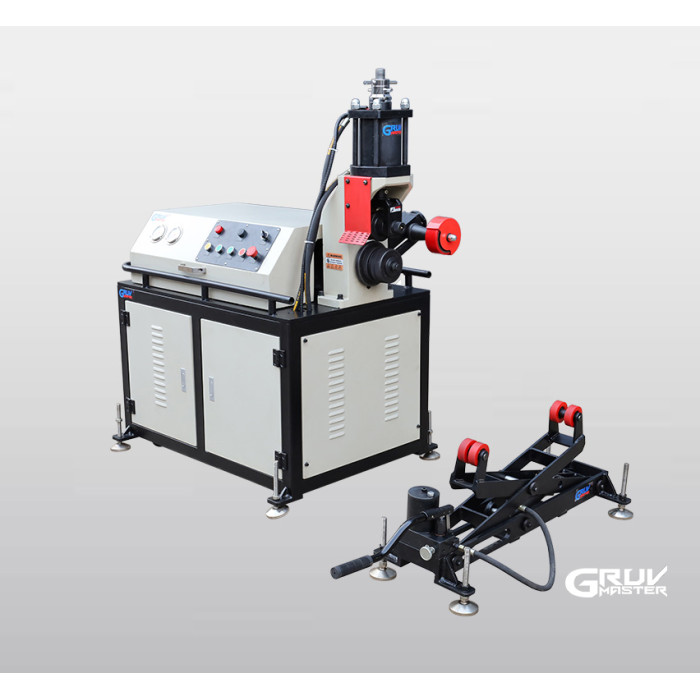

2"-12" Automatic hydraulic pipe groove machine

Welding 1600mm hydraulic butt welding machine

Below are its main functions and features:

Key Functions:

1. Groove Formation: Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.

2. Compatibility: Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.

3. Semi-Automatic Operation: Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.

Features:

1. Robust Construction: Built with durable materials to withstand high-intensity operations and ensure a long service life.

2. High Efficiency: Semi-automatic operation speeds up the grooving process while maintaining accuracy.

3. User-Friendly Design: Simple controls and an ergonomic structure make the machine easy to operate, even for users with minimal training.

4. Adjustable Settings: Equipped with adjustable rollers and blades to accommodate different pipe specifications.

5. Compact and Portable: The machine's compact design ensures easy transport and storage, ideal for on-site applications.

This machine is a cost-effective solution for professionals seeking reliable and efficient grooving for steel pipe installations.

scope

model	RG-5A
Applicable materials	Carbon steel, stainless steel
capacity	Suitable for 1"-8" steel pipe SCH10/SCH40
	Suitable for 1"-8" steel pipe SCH10/SCH40
	Suitable for 10"-12" steel pipe SCH10/SCH20
power supply	220V/110V
frequency	50Hz/60Hz
Maximum wall thickness	8mm
Motor Power	1100W
Output speed	23 rpm
Packaging gross weight	95kg
Package Size	754077cm

Ordering Information

catalog number	stage	strength	Voltage frequency
900050	single	1100W	220V, 50/60HZ
900051	single	1100W	110V, 50/60HZ

Standard Parts

Item Number	describe	net weight
911106	Drive roller 1"- 1 ½" (φ33~φ48)	1.15kg
911107	Driving roller 2"-3"(φ60~φ89)	1.15kg
911108	Drive roller 3 ½"~6" (φ101~φ168)	1.70kg
911019	Driving roller 8"-12" (φ219~φ325)	1.70kg
912041	Grooved roller 1"- 1 ½" (φ33~φ48)	0.90kg
912042	Grooved roller 2"-6"(φ60-φ168)	0.80kg
912043	Grooved roller 8"-12" (φ219~φ325)	0.70kg
998078	1"-12" pipe rack	6.90kg
998026	Foot switch	1.50kg

Product details picture

Pipe rack

Suitable for 1"-12" steel pipe

drive roller

Set 1"- 1 ½" (φ33~φ48)

A set of 2"-3"(φ60~φ89)

Set of 3 ½"-6" (φ101~φ168)

A set of 8"-12" (φ219~φ325)

_{Troughed roller}

A set of 1"- 1 ½" (φ33~φ48) ;

A set of 2"-6" (φ60~φ168);

8"-12" (φ219~φ325) set;

Foot switch

Foldable Trolly

Tolly with two wheels. easy to transport it
