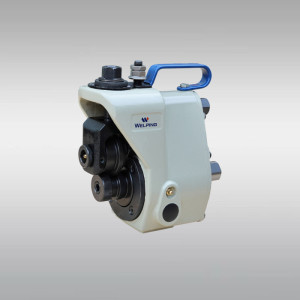

Manual Roll Groover for Steel Pipe SCH10/SCH40 1"-6 "(RG-2M)

KeyWords

Manual Roll Groover for Steel Pipe SCH10/SCH40 1"-6 "(RG-2M)

roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations

Grooving Capacity: 1"-6"

Max Wall Thickness: 6mm

Operation Radius: 210mm/ 8 ¼"

Gross weight: 15kg

Contact Now

Favorites

Detail Information

1"-6" Heavy Duty manual Roll Groover

Welping 1600mm hydraulic butt fusion machine

Model RG-2M combination Roll Groove is designed TWO TOOLS IN ONE.

With its compact and portable design, this roll grooving machine is perfect for performing medium volume grooving tasks in tight spaces and on job sites

Chuck your workpiece into the 300 threading machine's power drive or horizontal threading machine, or use a manual roll groove to create threads in place without the need for a power supply

Heavy duty design for fire-fighting pipelines size range 1"~6" (DN25~DN168),SCH10 to SCH40).

Groove depth lock net ensures high quality grooves and high grooving efficiency.

Quick and easy swap shafts in 30 seconds.

PARAMETER

Mode	RG-2M
Suitable materials	Carbon Steel,Stainless Steel
Capacity	for 1"-4" steel pipe SCH10/SCH40 for 5"-6" steel pipe SCH10/SCH20
Max wall thickness	6mm
Operation Radius	210mm/ 8 ¼”
Packing gross weight	15kgs
Packing size	502053cm

ORDERING INFORMATION

Catalog Number	Description	Net Weight	Packing Size
900001	1"-6" Manual Roll Groover	12.5kg	502253cm

STANDARD PARTS

Item Number	Description	Net weight
911071	Drive roller 1 ¼"- 6" (φ42~φ48)	0.70kg
912016	Groove roller 1"-6"(φ33~φ168)	0.30kg
998036	Ratchet socket	1.50kg
998035	Tool bag	1.50kg

OPTIONAL PARTS

Item Number	Description	Net weight
911011	Drive roller 1"(φ33)	1.50kg
911016	Support arms (*2) for 300 power drive	1.40kg
911015	Drive bar adaptor	2.50kg
998034	HDPE tool box	2.70kg
98114	Bracket set for horizontal threading machine	1.00kg

PRODUCT DETAILS MAP

Drive Roller

one set 1¼"- 6" (φ42~φ48);

_{Groove roller}

one set 1"- 6" (φ33~φ48);

Tool Bag

Ratchet with socket

Drive Bar Adapter

Support Arm

2 pcs for 300 threading machine

Bracket set for horizontal threading machine

HDPE Tool Case

2 pcs for 300 threading machine
