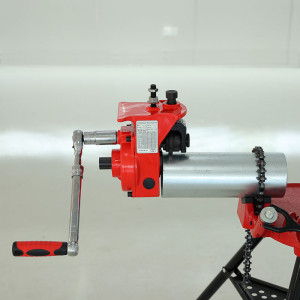

Manual Roll Groover for Steel Pipe SCH10/SCH40 1"-12 "(RG-1M)

KeyWords

Manual Roll Groover for Steel Pipe SCH10/SCH40 1"-12 "(RG-1M)

roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations

Grooving Capacity: 1"-12"

Max Wall Thickness: 8mm

Operation Radius: 210mm/ 8 ¼"

Gross weight: 25kg

Contact Now

Favorites

Detail Information

1"-12" Heavy Duty Hydraulic Rolling Grooving Machine

Welding 1600mm hydraulic butt welding machine

The Model RG-1M Combination Roll Groove is designed as a two-in-one tool.

With its compact and portable design, this roll grooving machine is ideal for performing medium-volume grooving tasks in tight spaces and on the job site

Clamp the workpiece into the 300 Tapping Machine's power drive or horizontal tapping machine, or use manual rolling grooves to create threads in place, no power required

Heavy-duty design for fire pipe size range 1"~12" (DN25~DN300), SCH10 to SCH40).

Groove depth locking mesh ensures high quality grooves and high grooving efficiency.

Quickly and easily change shafts in 30 seconds.

scope

model	RG-1M
Applicable materials	Carbon steel, stainless steel
capacity	Suitable for 1"-8" steel pipe SCH10/SCH40 Suitable for 10"-12" steel pipe SCH10/SCH20
Maximum wall thickness	8mm
Working radius	210 mm / 8 ¼ inches
Packaging gross weight	85kg
Package Size	734077cm

Ordering Information

catalog number	describe	net weight	Package Size
900000	1"-12" manual rolling groove machine	17.7kg	502253cm

Standard Parts

Item Number	describe	net weight
911010	Drive roller 1 ½"- 1 ½" (φ42~φ48)	0.70kg
911009	Driving roller 2"-6" (φ60~φ168)	0.70kg
911008	Driving roller 8"-12"(φ219~φ325)	0.70kg
912016	Grooved roller 1”-6” (φ33~φ168)	0.30kg
912005	Grooved roller 8"-12"(φ219-φ325)	0.30kg
98036	Ratchet with sleeve	1.50kg
998035	Toolkit	1.50kg

Optional accessories

Item Number	describe	net weight
911011	Driving roller 1"(φ33)	1.50kg
911016	Support arm for 300 power drive (*2)	1.40 kg
911015	drive rod adapter	2.50 kg
998034	HDPE tool box	2.70kg
998114	Horizontal tapping machine bracket set	1.00kg

Product details picture

Toolkit

drive roller

A set of 1 1/4"- 1 ½" (φ42~φ48) ;

A set of 2"-6" (φ60~φ168) ;

8 "-12" (φ219~φ325) set ;

_{Troughed roller}

1"- 6" (φ33~φ168) set ;

A set of 8"-12" (φ219~φ325)

Ratchet with sleeve

Toolbox (optional)

Drive roller 1" (optional)

Support arm*2 (optional)

Drive rod (optional)
