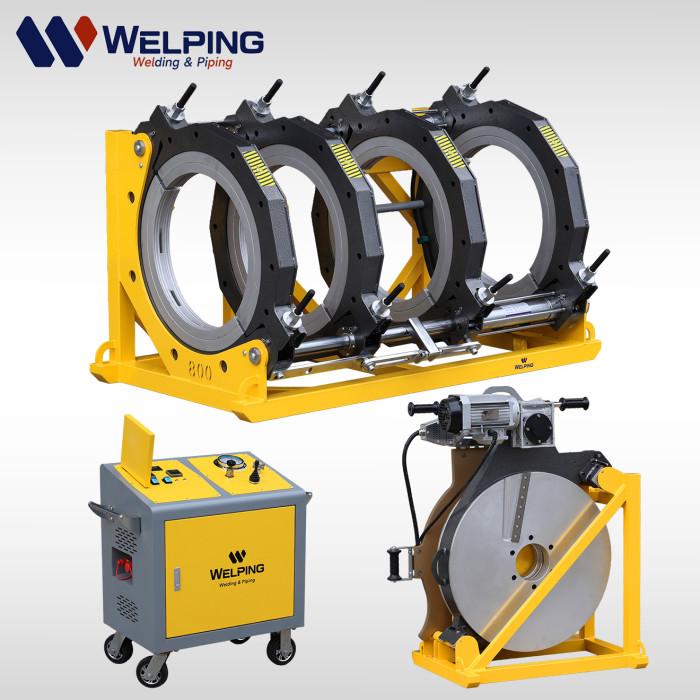

Hydraulic HDPE Pipe Fusion Welding Machine 630/800mm

KeyWords

Hydraulic HDPE Pipe Fusion Welding Machine 630/800mm

It is a versatile machine designed for butt fusion of 630mm to 800mm pipe and fittings, with durability and reliability.

Lead Time: 7-15 days once order confirmed

Terms of Payment: T/T, Western Union, Paypal,X Transfer

FOB Port: Shanghai, Ningbo

Certificate: CE

MOQ: 1 Set

Business type: Plastic pipe welding machines manufacturer

Contact Now

Favorites

Detail Information

630/800mm Hydraulic Butt Fusion Welding Machine for PE Pipes

Welping WP160A hydraulic butt fusion machine

_DETAILS

HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries. Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.

The 800mm butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

The Butt Fusion Machine is designed to butt fuse pipe sizes 630mm to 800mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

FEATURES

※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin

STANDARD ACCESSORIES
Main Frame	1 Set
Heating Plate	1 Set
Trimmer	1 Set
Reducers	1 Set
Tool Box	1 Set

PARAMETER

Welping WP160C 160mm butt fusion machine

Mode	WP800A
Suitable materials	PE,PP, PB. PVDF
Range	630-710-800mm
Range	630-710-800mm
Power supply	380V
Frequency	50HZ
Pressure adjusting range	0-16Mpa
Total power	16.2 KW
Heating plate	12.5 KW
Planing tool	2.2 KW
Hydraulic Unit	1.5 KW
Max Temperature of Heating plate	270℃
Temp.Deviation in Surface	±5ºC
Total Weight	1200kg
Net weight	1100g
Packing Volume	4.6CBM

PRODUCT DETAILS MAP

Basic Frame

· 4 Jaw Clamps to ensure precise alignment

· Italy DNP quick coupler · Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel

· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel · Steel plate cutting clamp with sandblasting &spraying treatment · Base made of Q235 steel with spraying treatment

Hydraulic Station

· Standard equipping pressure more stable

· Fully enclosure structure,anti-dust,and anti-sand

· Electricity leakage protection switch

· 380V asynchronous motor

_{Planning tool}

· HSS blade with double edge

· Casting aluminum trimmer plate, durable and anti-corrosion

· Casting aluminum frame of motor with good heat dissipation performance

· Motor with pure copper wiring

_{Heating Plate}

· Bakelite handle with high insulating property and thermal insulation · Thermocouple temperature sensor · Heating element · Teflon Coating imported from Daikin in Japan · Aviation plug

_Inserts

Aluminum inserts from 630-710-800mm

450-500-560mm inserts are for option

DOWNLOAD

_{Welping E-Catalog of Butt Fusion Machine}

_{Breakdown Part List of Hydraulic Butt Fusion Machine}

_{Operational Manual of Hydraulic Butt Fusion Machine}

_{Warranty Certificate of Butt Fusion Machine}
