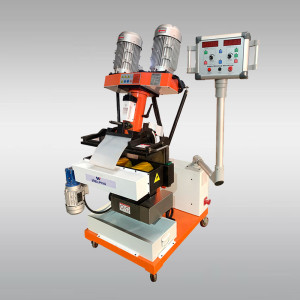

Automatic feed Plate Edge Metal Side steel Pipe plate Milling Machine

KeyWords

Automatic feed Plate Edge Metal Side steel Pipe plate Milling Machine

The milling machine equiped with commonly used CNC blades to make the customers use the costs more cheaply.

Color: Silver

Volate: AC380V/50hz

Application material: Stainless steel,alloy steel,carbon steel,Composite

Clamp thickness: 6-40mm

Spindle Speed: 0-1500r/min (adjustable)

Bevel Angle: 10°-60° (adjustable)

Contact Now

Favorites

Detail Information

INTRODUCTION

_DETAILS

WP-60 Pipe plate Milling Machines can adjust from 10° to 60° Rear-mounted speed reducer is good for processing narrow plate, and it is safer Special separate design of Control Box and electrical carbinet make the operation safer Adopt multiply-cutting blades head to process plate beveled edge, therefore the milling speed of each blade is faster and easier. The surface roughness of plate beveling face can reach to Ra3.2~6.3, it can complete meet the welding demand of pressure vessel Small in Size, light in weight Cold milling method does not affect the material property, no oxidation in beveled surface.

FEATURES

●WP-60 edge milling machine convenient and simple operation. ●The finish of groove is as high as Ra3.2-6.3. ●The milling machine equiped with commonly used CNC blades to ●make the customers use the costs more cheaply.

STANDARD ACCESSORIES
Machine body	1 Set
Blade	1 pc
Tool box with wrenches	1 Set

PARAMETER

Power	AC 380V/50hz	Clamp thickness	6-40mm
Total	3400W	Clamp width	＞80mm
Spindle Speed	1050r/min	Clamp Length	＞300mm
Feed Speed	0-1500r/min (adjustable)	Work Height	820-860mm
Bevel Wdith	1-45mm	Processing materials	Carbon Steel
Single Bevel Width	1-15mm		Stainless Steel
Bevel Angle	10-60°		Aluminum alloy
Automatic clamping (optional)			Composite Plate

PRODUCT DETAILS MAP

Handle Wheel

Adjust Feed Volume

CNC Cutter

High Precision

New Type Cutter

More accurate when processing 90°

Angle Scale

Adjust Bevel Angle

Rubber Wheel Clamp

More tighter Protect plate surface not damage

CNC Displayer

Accurate Adjust Feed Speed

Equip with Manual clamp

Auto clamp function is optional
