Manual Butt Fusion Machine for PE,PP,PB,PVDF Pipes 63MM to 160MM

KeyWords

Manual Butt Fusion Machine for PE,PP,PB,PVDF Pipes 63MM to 160MM

Rugged and reliable, the 63mm to 160mm manual HDPE pipe jointing Machines are lightweight and require only one operator

Lead Time: 7-15 days once order confirmed

Terms of Payment: T/T, Western Union, Paypal,X Transfer

FOB Port: Shanghai, Ningbo

Certificate: CE

MOQ: 1 Set

Business type: Fusion equipment manufacturer

Contact Now

Favorites

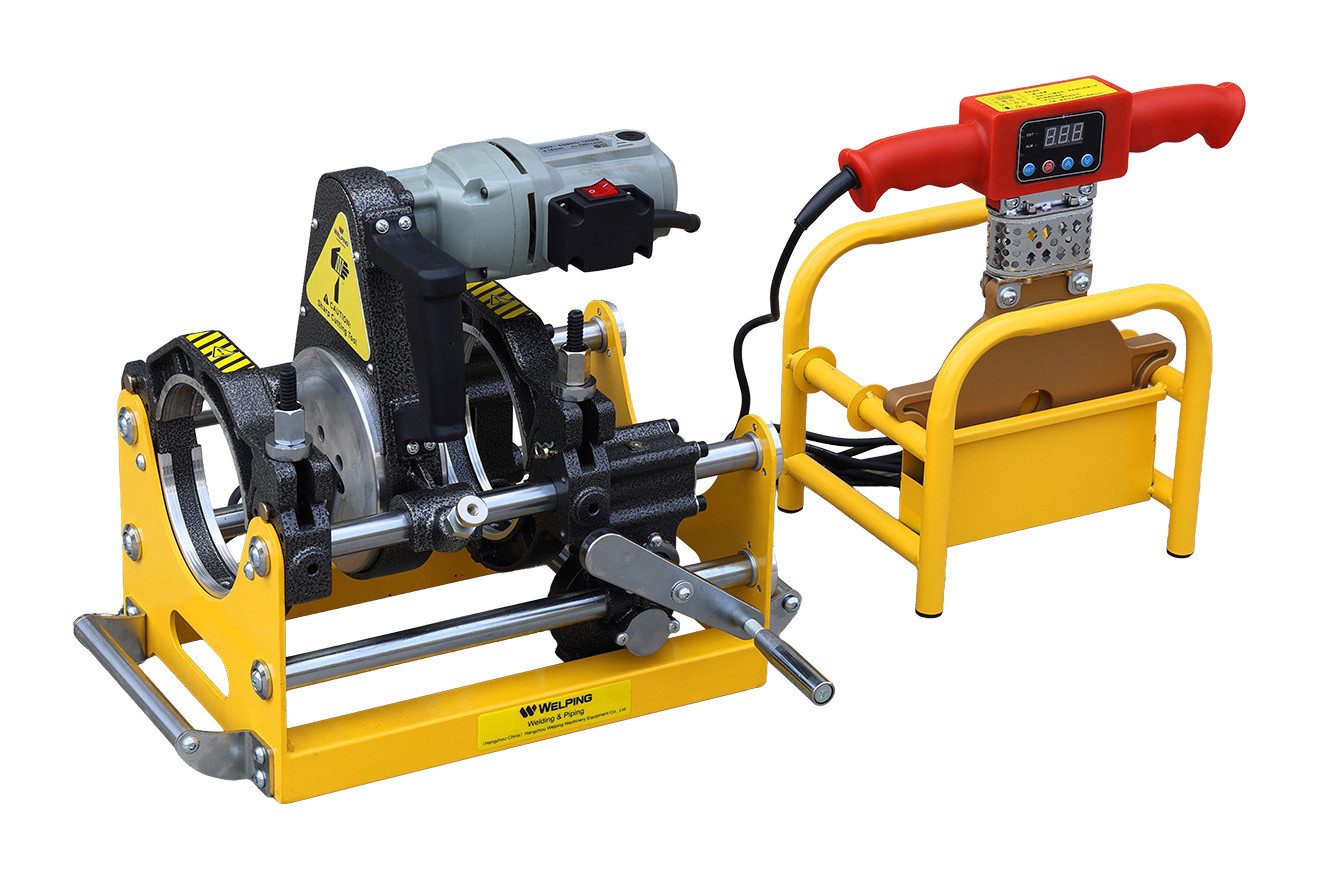

Detail Information

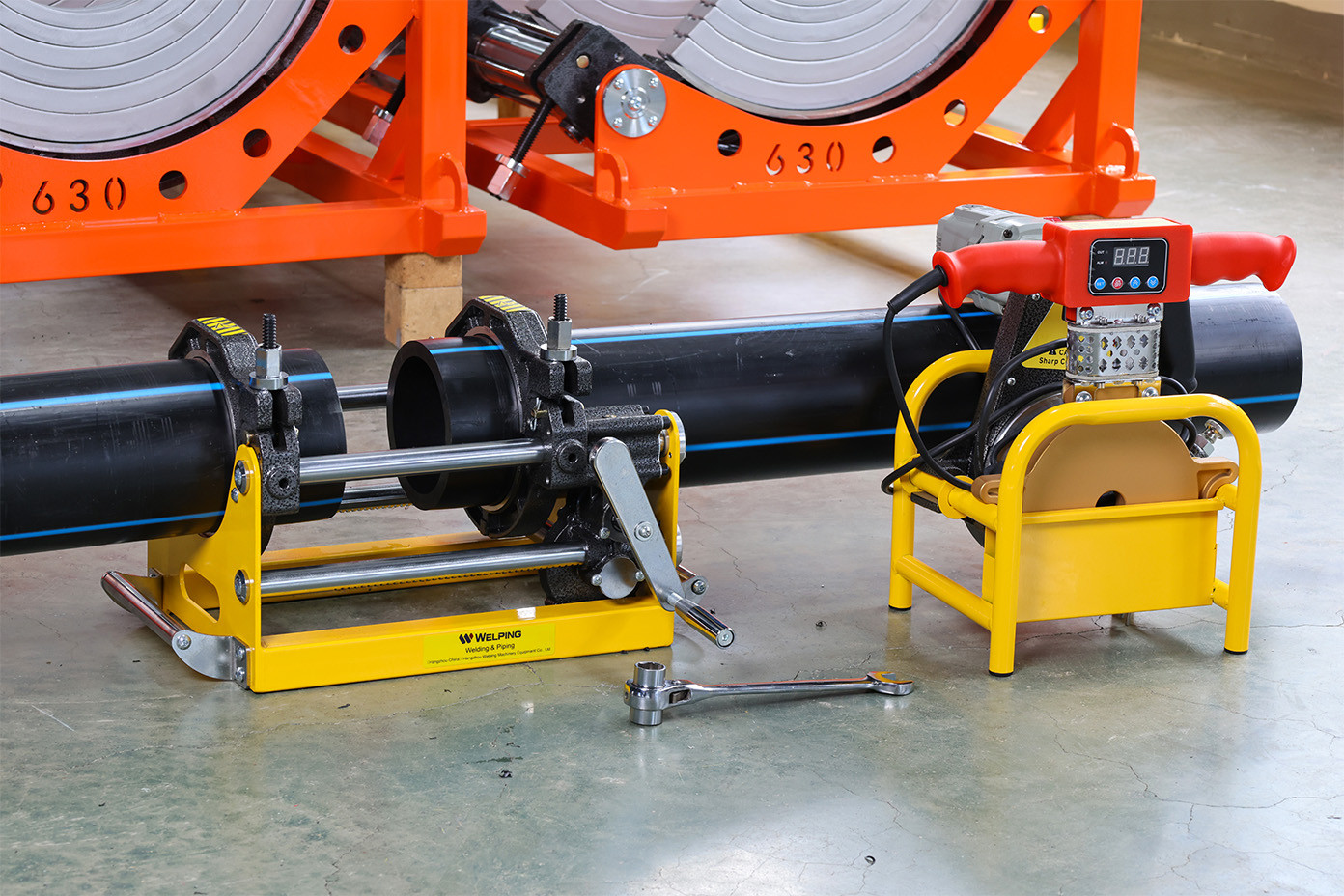

INTRODUCTION

_DETAILS

Manual Butt Fusion Machine provides standard welding range of 63mm to 160mm, with unique gear transmission structure. mainly consists of 2 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating. It's an effective, trouble free connecting for PE, PP, PVDF pipes.

FEATURES

※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin

STANDARD ACCESSORIES
Main Frame	1 Set
Heating Plate	1 Set
Trimmer	1 Set
Reducers	1 Set
Tool Box	1 Set

PARAMETER

Mode	WP160C2
Suitable materials	PE,PP, PB. PVDF
Range	63-75-90-110-125-140-160mm
Range	63-75-90-110-125-140-160mm
Power supply	110V/220V
Frequency	50HZ
Total power	2.9 KW
Heating plate	1.6 KW
Planing tool	1.1 KW
Max.Temperature of heating plate	270ºC
Temp.Deviation in Surface	±5ºC
Total Weight	55kg
Net weight	48kg
Packing Size	524260cm

PRODUCT DETAILS MAP

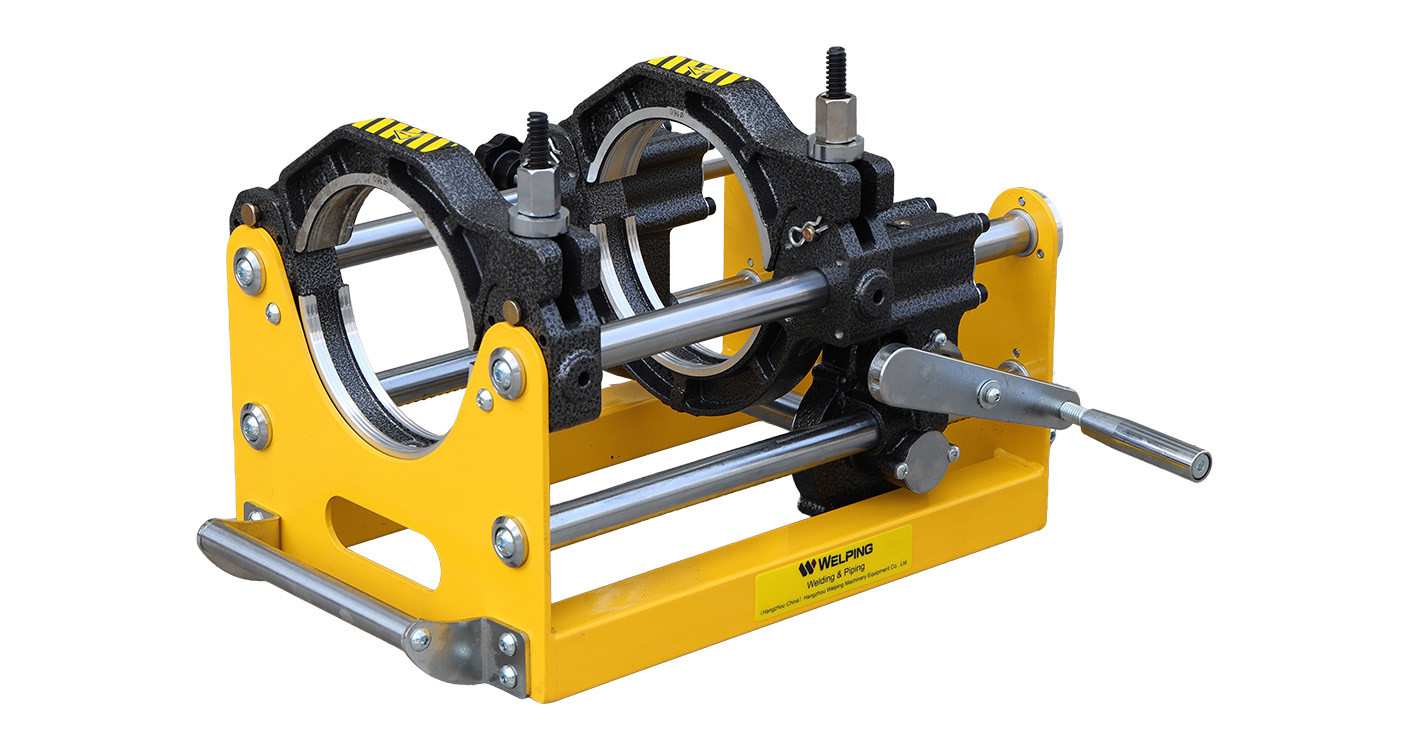

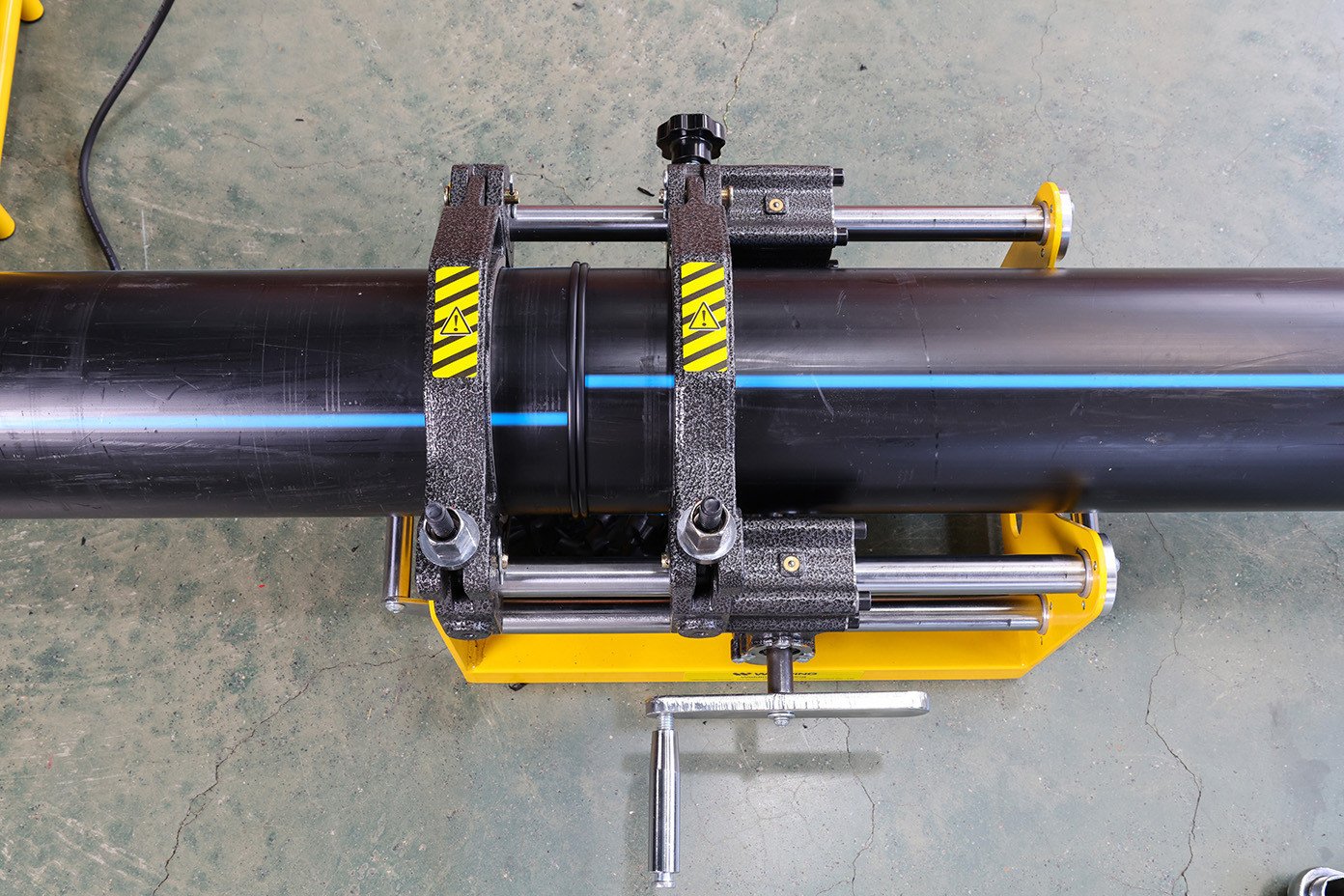

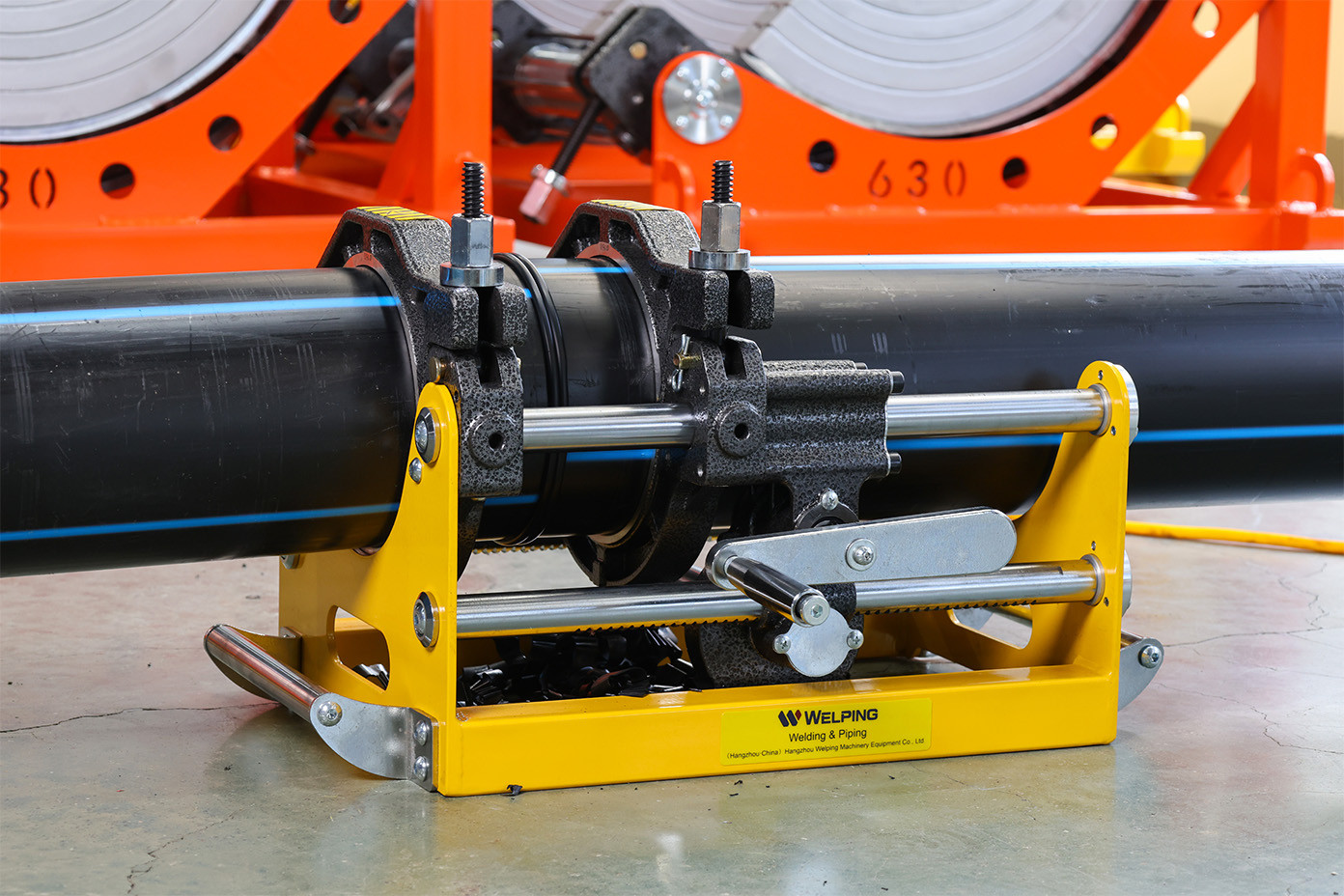

Basic Frame

· Complete welded frame structure, steady and robust

· Hand-wheel driving, simple and convenient

· Chromated integral shaft made of1045(ASTM)/S45C(JIS)/C45(DIN) steel

· Base made of Q235 steel with spraying treatment

· Cast aluminum clamps, sandblasting &

Spraying treatment

_{Planning tool}

· _{HSS blade with double edge}

· _{Casting aluminum trimmer plate, durable and anti-corrosion}

· _{Gear transmission instead of chain}

· _{Motor with pure copper wiring}

_{Heating Plate}

- Teflon Coating from Japan - Thermocouple sensor - Bakelite handle - Digtal display

Reducers

63-75-90-110-125-140-160-180-200mm reducers
